Specs:

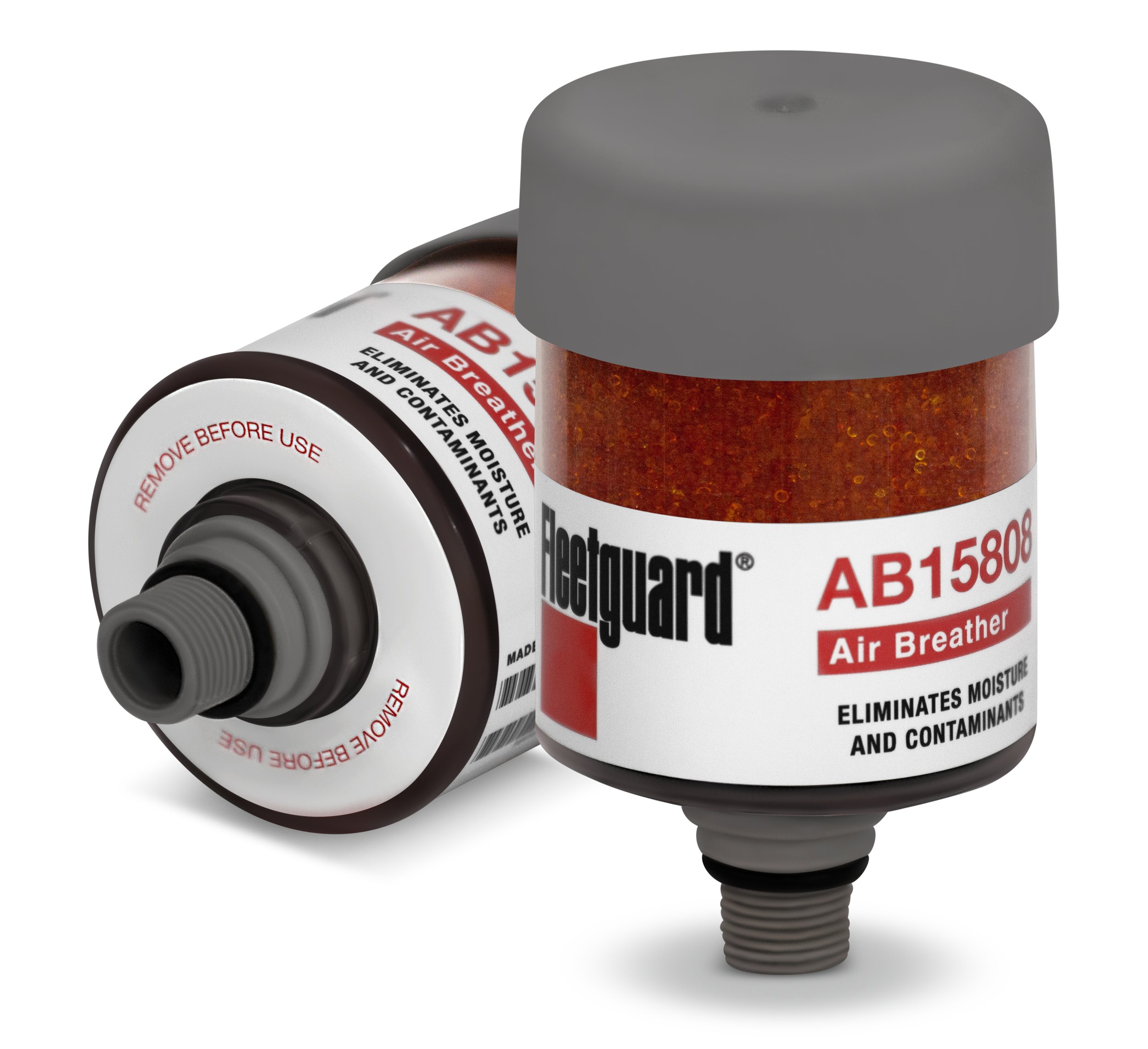

Standard Life Desiccant Breather without Check Valve. Click Here for Check-Valve version.
Recommended for 240-420 gallons storage tanks, drums, totes, transformers and hydraulic applications in low moisture environments.
1″ Sure-Fit (NPT, BSPP, NPSM) connection.
Max Moisture Retention = 264 ml (8.9 fl oz), Max Airflow at 1psid = 18 cfm (510 lpm or 135 gpm).
Largest OD = 10.41 cm (4.1 in).
Length / Overall Height = 21.03 cm (8.28 in).
Dual Phase Micro-glass media with 2-stage filtration.
Filter Efficiency = 99.9% @ 1 micron.
Operating Temperature Range = (-20°F to 200°F) or (-29°C to 93°C).
Moisture-Absorbing Desiccant: Silica Gel.
Body Material: ABS, Nylon, Polypropylene, Buna-N.
Compatible with a wide range of mineral oils, synthetic oils and diesel fuels.
Replace when color change from Orange to Green.
