Specs:

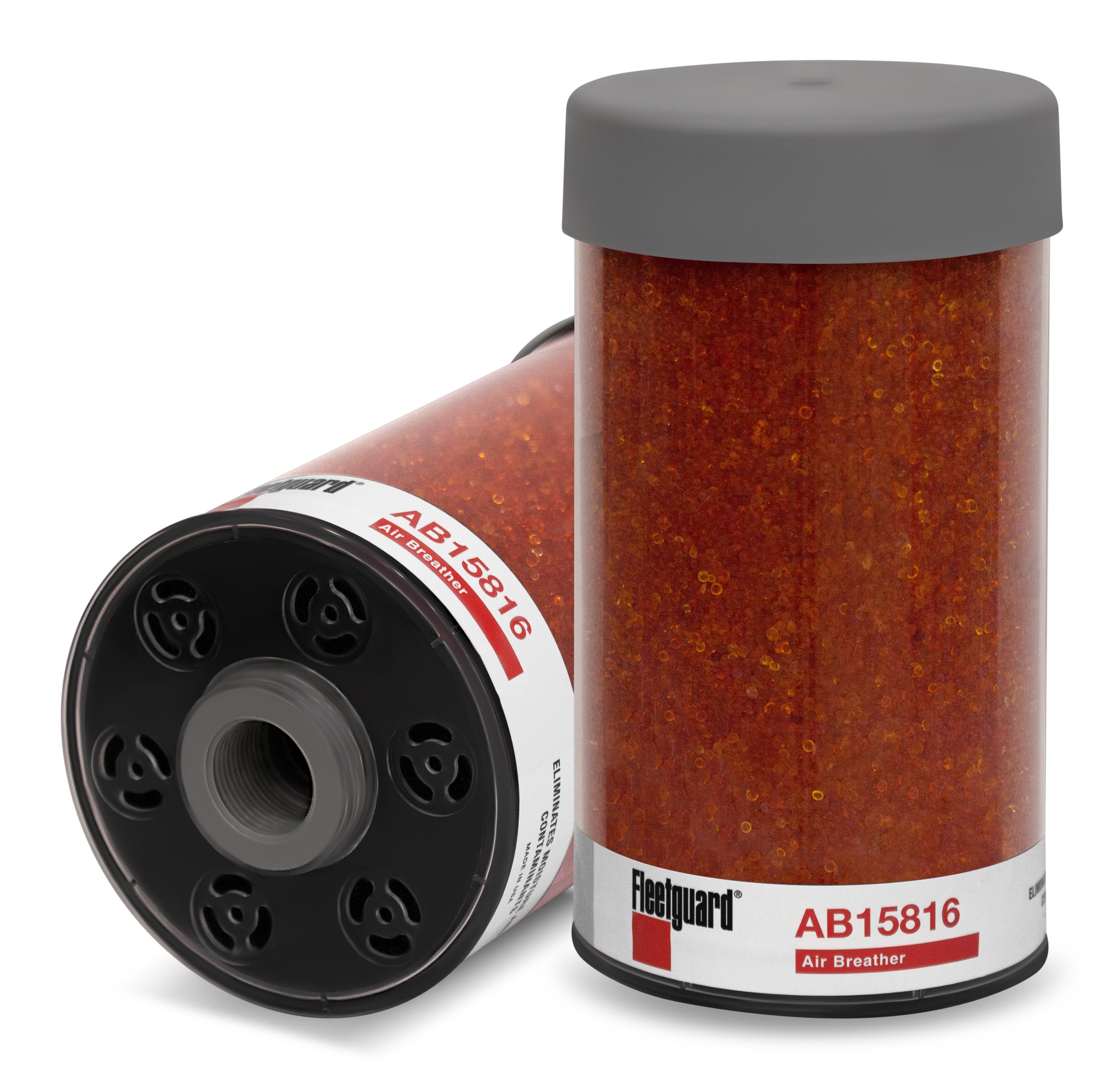

Extended Life Desiccant Breather without Check Valve. Click Here for Check-Valve version.
Recommended for stationary fluid reservoirs or machinery (gearbox/hydraulics) applications in high moisture environments.
1″ Sure-Fit (FNPT, FBSPP, FNPSM) connection.
Max Moisture Retention = 958 ml (32.4 fl oz), Max Airflow at 1psid = 32 cfm (906 lpm or 239 gpm).
Largest OD = 14.48 cm (5.7 in).
Length / Overall Height = 27.18 cm (10.7 in).
Dual Phase Micro-glass media with 2-stage filtration.
Filter Efficiency = 99.9% @ 1 micron.
Operating Temperature Range = (-20°F to 200°F) or (-29°C to 93°C).
Moisture-Absorbing Desiccant: Silica Gel.
Body Material: ABS, Nylon, Polypropylene, Buna-N.
Compatible with a wide range of mineral oils, synthetic oils and diesel fuels.
Replace when color change from Orange to Green.
